- 15" LCD Panel
- 5 wires touch screen
- Taiwan EETI touch card
- Factory-control Grade A LED panel
- 24-hour non-stop operation;
- Efficient heat dissipation system

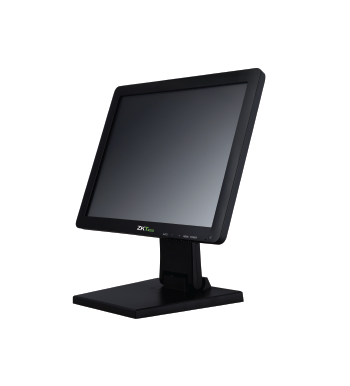

- Foldable Touch Monitor
- Support windows platforms
- Multiple installation methods available, including horizontal, vertical and VESA standard
- High gloss black edges
- Integrated touch function and LCD solution
- Support USB touch interface
- Support VGA input format
|
Model |
|
ZKD1502 |
ZKD1503 |
|
LCD Type |
Type |
15" TFT LCD Panel |
15" AUO TFT LCD Panel |
|
Dimension |
350*44*275mm (L*W*H) |
||
|
Display Area |
305×230 (mm) |
||
|
Max Resolution |
1024×768 @ 60Hz |
||
|
Color |
16.7 million |
||
|
Brightness |
250cd/m2 |
||
|
Response Time |
5 ms |
||
|
Visual Angle (Typ.at CR > 10) |
Horizontal (left/right): 85°/85° Vertical (upper/lower): V80°/80° |
||
|
Contrast Ratio |
1000:1 |
||
|
Video Input Format |
VGA |
||
|
Frequency (H/V) |
30~80KHz / 60~75Hz |
||
|
MTBF |
50,000 hours |
||
|
LED Backlight Lifespan |
50,000 hours |
||
|
Touch Panel |
Type |
ZKD1502R: 5 wires resistive touch (Standard) ZKD1502C: 5 wires capacitive touch (Optional) |
ZKD1503R: 5 wires resistive touch from Taiwan Higgstec (anti-high temperature) (Standard) ZKD1503C: 5 wires capacitive touch from Taiwan Higgstec (anti-high temperature) (Optional) |
|
Interface |
USB |
||
|
Response Time |
USB: 10 ms |
||
|
Power Supply |
Type |
External power adapter |
|
|
Power Adapter |
12V 3A Power adapter |
12V 3A Power adapter from Taiwan |
|
|
Input Voltage |
100-240 VAC, 50-60 Hz |
||
|
Output Voltage |
12 volts at 4 amps max |
||
|
Power Consumption |
12W(Max) |
12W(Max) |
|
|
Work Environment |
Operating Temp. |
0°C~50°C |
|
|
Storage Temp. |
-20°C~60°C |
||
|
Operating Humidity |
5%~90% |
||
|
Storage Humidity |
5%~90% |
||
|
Appearance |
Installation Mode |
1) VESA 75 mm 2) Using a horizontal or vertical mounting support |
|
|
OSD Control |
Button |
AUTO, +, POWER, -, MENU |
|
|
Function |
Brightness, Contrast, Auto correction, Phase, Clock, Row and column position, Language, Function setting, Reset |
||
|
Other |
Accessory |
Power cable; Power adapter; USB cable; VGA cable |
|
|
Warranty Period |
1 year |
||
