- Optional Intel® Core i3 and i5 processor
- 15” Bezel-Free true-flat display with PCAP touch
- Multiple I/O interfaces for peripherals
-
Power-efficient Intel® Celeron® J1900 2.0 GHz Quad-Core processor
-
Optional Intel® Core i3 and i5 processor
-
15” Bezel-Free true-flat display with PCAP touch
-
Multiple I/O interfaces for peripherals
-
Standard with 2G RAM and 32G SSD
-
Standard with 8C high-definition digital tube
-
Optional 3 tracks MSR, attached VFD&15” customer display
-
Faster installation and maintainability
|
Technical Specifications |
|||
|
Model Name |
ZK1510 |
ZK1530 |
ZK1550 |
|
System |
|
|
|
|
Processor |
Intel® Celeron® J1900 Quad-Core processor(2.0 GHz) |
Intel® Core i3-4010U Processor(1.7GHz) |
Intel® Core i5-4200U Processor(1.6 GHz) |
|
System Memory |
2GB Standard, DDR3L 1333MHz(Max.8GB) |
||
|
Storage Device |
32GB SSD Standard,1*2.5’’ HDD&2.5’’ SSD |
||
|
OS |
Windows 7,Windows 8, Windows 10 IoT Enterprise, POS Ready 7,Linux |
||
|
Audio |
Realtek ALC662 |
||
|
Display and Touch |
|
||
|
Type |
15’’ TFTLCD, LED Backlight |
||
|
Resolution |
1024×768 |
||
|
Touch Screen |
Projected Capacitive touch Screen |
||
|
Customer Display |
LED(8C digital tube) |
||
|
External I/O Ports |
|
||
|
VGA |
1*DB-15 |
||
|
USB |
5*USB2.0,1*USB3.0 |
4*USB2.0,2*USB3.0 |
4*USB2.0,2*USB3.0 |
|
Serial & HDMI |
1*RS232(Max.4pcs) |
1*HDMI+3*RS232 |
1*HDMI+3*RS232 |
|
LAN |
1*RJ45 |
||
|
Audio |
1*Line-out |
||
|
Power |
|
||
|
Power Supply |
Adaptor 12V DC 5A |
||
|
Physical Environmental |
|
||
|
Operating Temperature |
0℃ ~ 35℃ at 20%-80% Humidity |
||
|
Storage Temperature |
- 20℃ ~ 55℃ at 20%-80% Humidity |
||
|
Dimensions(W×H×D) |
358*390*236*mm |
||
|
Packing Dimensions |
460*490*315mm |
||
|
Net Weight |
5.8kg |
||
|
Packing Weight |
6.9kg |
||
|
Certification |
CE FCC |
||
|
Color |
White |
||
|
Options & Peripherals |
|
|
|
|
2nd Display |
15’’ TFT LCD |
||
|
Customer Display |
20 columns × 2 Lines |
||
|
MSR |
3 Tracks |
||
|

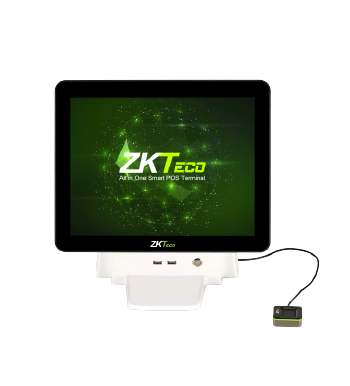

Fingerprint |
USB fingerprint reader(SLK20R) |
||
