ZK-D180
  • Compact size handheld metal detector
  • High sensitivity
  • Controllable sound and vibration effect

ZK-D180 is the ZKTeco self-developed compact size hand held metal detector featured with a detection indicator right in the middle of its main body detecting the sizes of detected objects and visualizing in different color (Green to Red), a perfect tool for speeding up security process. The controllable sound and vibration eect is another highlight, security guard can identify the potential dangerous quietly.

  • Compact size, Portable
  • High sensitivity, able to detect object as small as a stamp

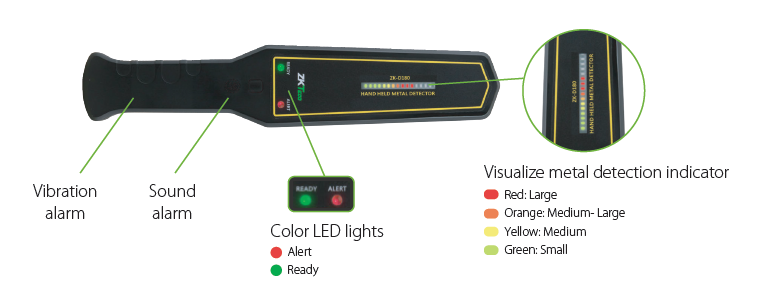

  • Visualize metal detection indicator
  • Rechargeable battery and charger
  • Extra-long working hours with single charge (Up to 40 working hours)
  • Controllable sound and vibration effect
  • Low sensitivity mode, lter out all the small and tiny object
  • Low battery voltage (7V) come with same detection range.
Dimension 345(L) X 69(W) X 25(H) mm
Power voltage 9V Rechargeable battery
Operating voltage 7V-12V
Operating current <5mA
Alarm terms Sound & light alarm/ Vibration & light alarm
Alarm sound ≥75dB(A)
Operation frequency 22KHz
';
