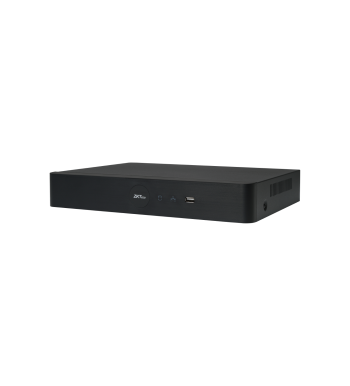

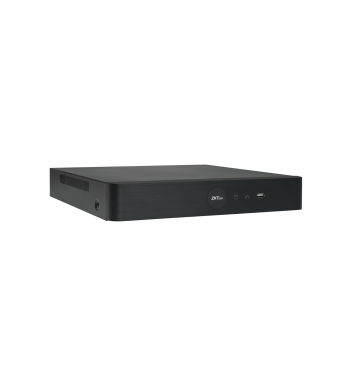

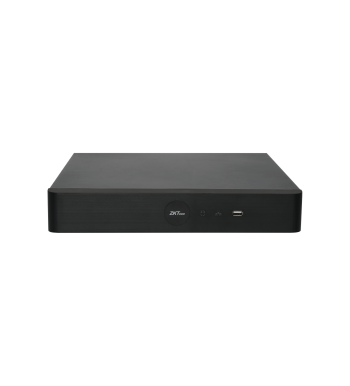

Z8516NFR-S

H.265+ 16 Channels BioSense Network Video Recorder

  • H.265+/H.265/H.264 decoding
  • Support 16-channel IP cameras input & preview
  • HDMI output up to 4K UHD
  • Pair with Biosense IP cameras to form a video surveillance system with multiple intelligent analytics
  • Support multiple web browsers login
  • P2P cloud service supported

BioSense Series Network Video Recorder (NVR) is the back-end storage device of the new intelligent video surveillance solution released by ZKTeco based on the Deep-Learning algorithm and Computer Vision technology.

Embedded with advanced and powerful CPU hardware, and ZKTeco’s graphical operation system, the BioSense Series Network Video Recorders are the ideal couple for the front-end BioSense Series IP Cameras. The NVR can support 24/7 continuously recording all video and intelligent alarm events generated by the front-end IP Cameras, and store safely into hard drive by human & vehicle classification. After recording the video and intelligent alarm events, the NVR can allow the user to efficiently retrieve and playback the target video evidence, especially for the key types of targets such as humans, vehicles, and objects. This function enables the user to focus on the most effective video clips and alarm events.

The BioSense Network Video Recorders can greatly help to improve the efficiency and safety of the entire video surveillance system, can be widely used in different scenario such as smart school, office, industrial park, community, public security, etc.

H.265+ HEVC

  • H.265+ is an evolutionary optimization of the traditional H.264, it includes a series of encoding strategy such as ROI, smart 2D/3D noise reduction, etc. Delivering high quality video with up to 75% lower bandwidth.

IVA (Intelligent Video Analytics)

  • BioSense Network Video Recorders support multiple intelligent video analytic functions couple with the BioSense IP Cameras, such as: Target Counting, Object Lost/Left, and the Line Crossing, Area detection, Smart Motion Detection base on human and vehicle targets classification.

Smart Retrieval

  • BioSense Network Video Recorders support smart retrieval for video and alarm events by human & vehicle classification, enable user to efficiently search out the targeting video clips and alarm events.

ANR (Only for SD card IPC models)

  • While the connection lost between IPC and NVR, the video will be saved in SD card. The saved video will be auto replenished to NVR when network recovers to avoid any video lost.

Alarm Push Notification

  • Alarm events received by the NVR can trigger linkage actions such as sending emails, playing audio, sounding a buzzer, and displaying an alarm message on the mobile app. These actions can be pushed in real-time to a mobile app or a management platform software.
Model Z8516NFR-S

System


Main Processor Multi-core embedded processor
Operating System Embedded LINUX
Operation Interface Web browser & Local GUI

Video and Audio


Max IPC Video Input 16CH
Two-way Talk Support
Audio Compression G.711u
Max Audio Input 16CH by IPC
Third Party Camera Access ONVIF & RTSP

Live View


Display Split 1/4/9/16 CH
Resolution 8MP(3840*2160) / 5MP(2592*1944) / 2MP(1920*1080) / 1.3MP(1280*1024) / 1Mp(1280*720) / D1(1024*768)
Live View Capability 16CH@D1(25/30fps)

Recording


Video Compression H.265+ /H.265 / H.264
Recording Resolution 8MP/5MP/4MP/3MP/1080P/960P/720P/D1
Max. Decoding Capability 16CH@D1(25/30fps)
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 80 Mbps
Stream Type Video, Video & Audio
Bit Rate Main Stream: 256Kbps ~ 8192Kbps
Sub Stream: 50Kbps ~ 700Kbps
Record Mode Schedule, Manual, Motion Detection, IVA Events Alarm
Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Playback and Backup


Playback Channel 16CH synchronously playback
Search Mode Time/ Date, Alarm Types, IVA Search
Playback Function Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Play, Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen
Backup Mode USB Device / Network Remote

Intelligent Video Analytics
IVA by Camera Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Object Lost/Left
Local IVA Functions displaying Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Counting Statistics, Object Lost/Left
IVA by Device(Number of Channels) Up to IPC
IVA by Camera (Number of Channels) 16

IVA Alarm


Smart IVA Alarm Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Counting Statistics, Object Lost/Left
Regular Detection Motion Detection / Video Shelter / Video Loss
Anomaly Alarm HDD Full, No HDD, S.M.A.R.T error, Network disconnected, IP conflict
Alarm Linkage Preview, Recording, Snapshot,Buzzer, Preset, Email, Tour, Upload center
Smart Search Support smart search out target video by human and vehicle classification filtering

Network


Network Protocol TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL/TLS, PPPoE, SNMP, WebSocket, P2P
Max. Online User 5
Web Browser Google Chrome/Microsoft Edge/Firefox/Safari/Opera
Operation System Windows
Management Platform ZKBio CVSecurity / ZKBio Access IVS / AntarVis 2.0
Mobile Application AntarView Pro+ (iOS & Android)
P2P Cloud Service Support
Interoperability ONVIF Profile S/G, SDK, CGI, API

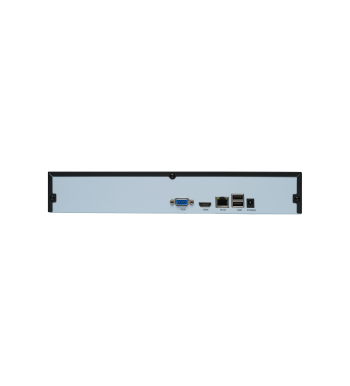

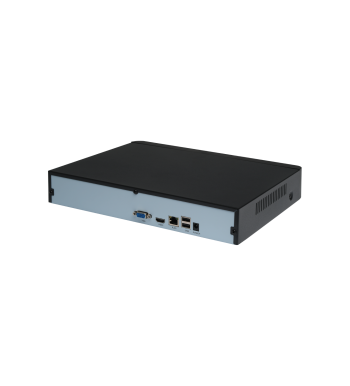

Storage & Auxiliary Interface
SATA Ports 2 SATA Port, up to 8 TB capacity each
eSATA N/A
Raid 0/1/5/6/10 N/A
HDMI 1*HDMI (4K)
VGA 1*VGA(1920*1080/60Hz, 1280*1024/60Hz)
Network Interface 1 RJ-45 Port (10/100Mbps)
PoE Ports N/A
Standard N/A
USB 3*USB 2.0
Audio Input/Output N/A
Alarm Input/Output N/A
RS-485 Support
RS-232 N/A

Power


Power Supply DC 12V/3A
Power Consumption ≦24W (without HDD)

General


Casing 1.5U
Operating Temperature -10°C to 55°C / 14°F to 131°F
Operating Humidity 0% to 90% RH (Non-condensing)
Storage Humidity 30% to 80% RH (Non-condensing)
Operating Altitude 3,000 m (9,842.52 ft)
Installation Desktop / Cabinet mount
Dimensions(L*W*H) 325 * 246 * 50 (mm)
Net Weight 3kg (without HDD)
Gross Weight 3.5kg (without HDD)
Certifications ISO14001, ISO9001, CE, FCC
