ProID100 Series

IP65 Waterproof RFID Access Control Reader

IP65 rating for high resistance to dust and water, ideal for indoor and outdoor use.
Features durable aluminum alloy and a tempered glass surface, ensuring longevity and robustness.

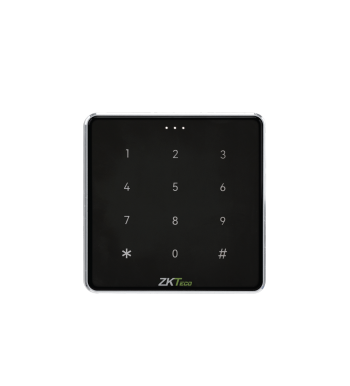

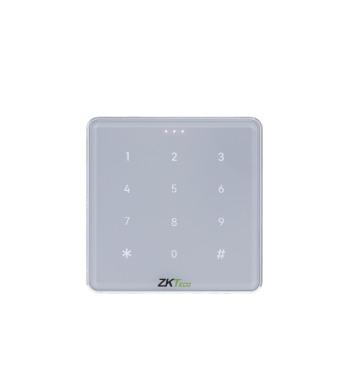

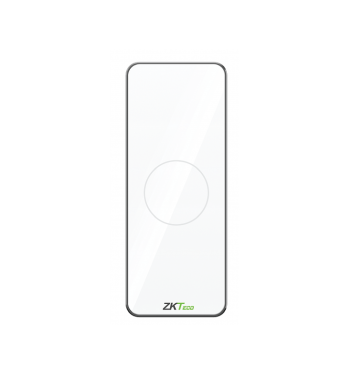

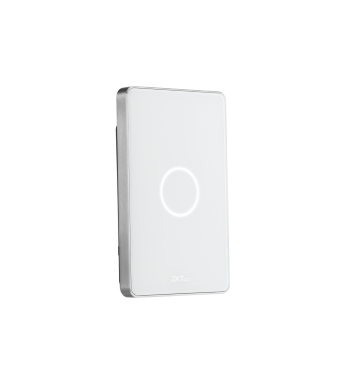

Available in two colors, black and white, to match the aesthetics of your environment.
On-site adjustable Wiegand output (26 or 34 bits) and RS485 for easy installation and management.

The ProID 100 series reader by ZKTeco is a highly advanced RFID access control reader that provides superior security. Its water-resistant design and sturdy aluminium alloy casing, rated IP65, make it an ideal solution for indoor and outdoor environments. The reader is available in two colours: Black and White, providing flexibility to match the aesthetics of your environment.

The ProID 100 series reader seamlessly integrates with access control devices through RS485 or Wiegand protocols, and can support IC and ID cards as options. With advanced features and flexible options, this reader delivers reliable and secure access control that is easy to manage and maintain.

Whether you need to secure a small office or a large facility, the ProID 100 series reader has you covered. Its advanced features and robust design provide unparalleled security and access control, making it the perfect solution for businesses and government organizations that require a high level of protection. Contact us today to learn more about the ProID 100 series reader and how it can help you enhance your security and access control systems.

Features durable aluminum alloy and a tempered glass surface, ensuring longevity and robustness.
LED lights and anti-disassembly alarm for added security measures.
Support for both 125kHz ID cards and 13.56MHz IC cards for versatile access control applications.
On-site adjustable Wiegand output (26 or 34 bits) and RS485 for easy installation and management.
IP65 rating for high resistance to dust and water, ideal for indoor and outdoor use.
Available in two colors, black and white, to match the aesthetics of your environment.

Model Name	ProID 101 / ProID 102 / ProID 103 / ProID 104
Processor	32-bit ARM Cortex-M0 48MHz ProID104: 32-bit ESP32 240MHz
Reading Range	0-3 cm ProID104: 0~20mm (The application environment influences the performance of the card and the card's reading distance it covers.)
Reading Time	≤0.3s
Reading Frequency	125kHz ID card / 13.56MHz IC card ProID104 : 13.56MHz IC card
Card Type	ID (Standard) /IC Card (ProID 101, ProID102, ProID103) IC&CPU&NFC (ProID 104)
Input Port	External LED Control External Buzzer Control
Casing Material	Aluminum Alloy Tempered glass surface
Power	Operating Voltage DC 7 to 13V Current Draw ≤350mA 5V ProID104: DC 12V 1A Current Draw ≤300mA
Output Format	ProID 101, ProID 102, ProID 103 and ProID 104: Wiegand 26-bit or 34-bit (Adjustable); RS485 ProID 104 additional support: Wiegand 66-bit (Adjustable)
Status Indicator	Pulsing White Standby Light Red and Green LEDs
Operating Temperature	-20 °C ~ 65 °C ProID104: -25 °C ~ 65 °C
Supported Panel	InBio,inBio Pro,C3 Series
Operating Humidity	10% ~ 90% RH Non-Condensing
Buzzer	Beep
Ingress Protection Rating	IP65 (Only ProID101, ProID 102 and ProID 103) IK04
Operating Environment	Indoor & Outdoor

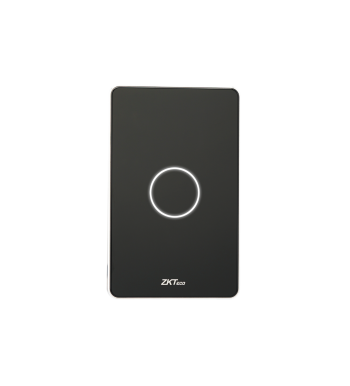

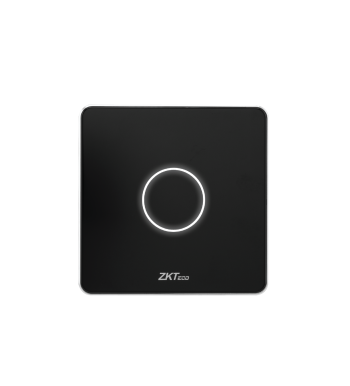

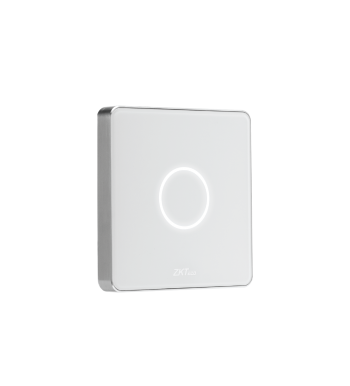

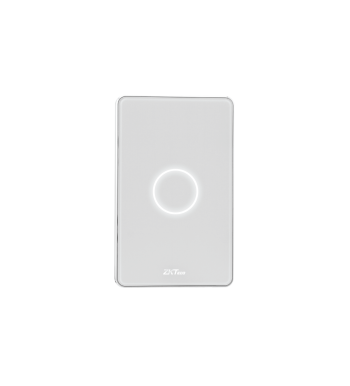

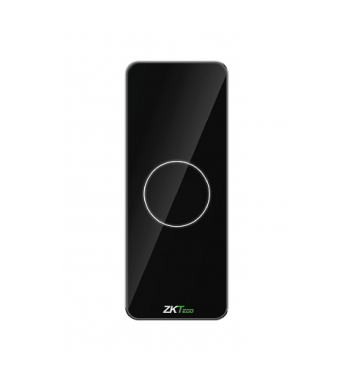

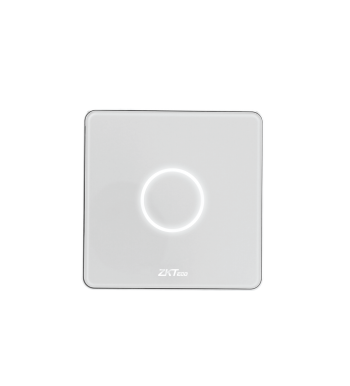

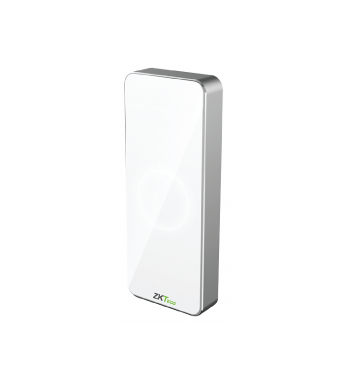

Dimensions	ProID101: 111 x 44.5× 11mm. ProID102: 86 x 86 x11.6 mm. ProID103: 123 x 76 x11.6 mm. ProID104: 86 x 86 x 11.2 mm.

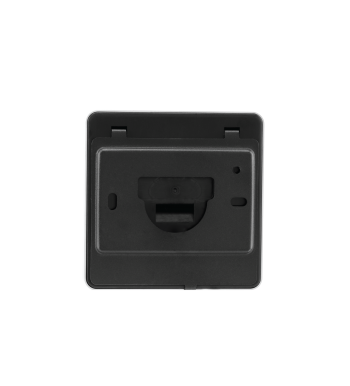

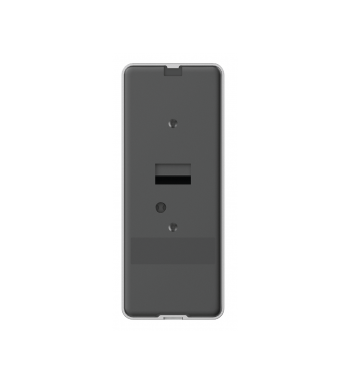

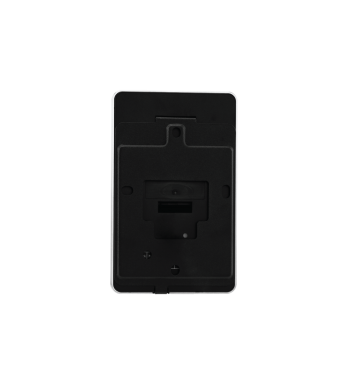

Mounting Method	Mullion mount : ProID101 Asian gang box : ProID102/ProID104 Single gang box : ProID103
Color	Black & White
Certification	ISO9001, ISO14001, CE, FCC
