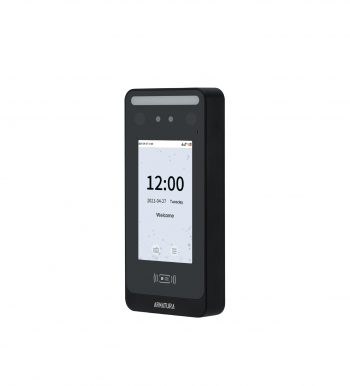

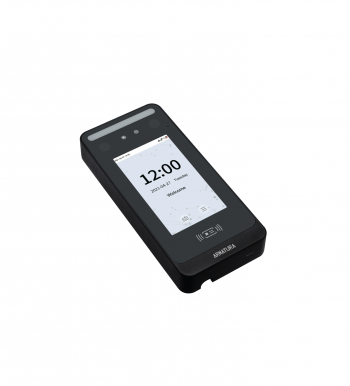

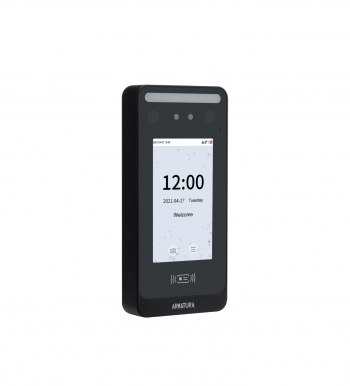

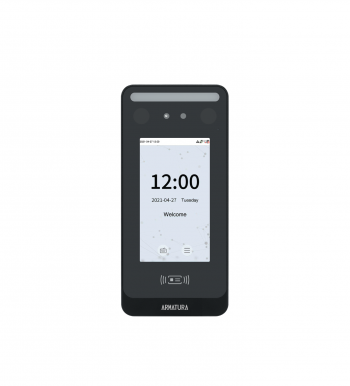

All Weather Outdoo Multi-tech Smart Standalone Terminal
- Multi-Biometric technology combining palm and face recognition
- IP66 water & dustproof protection rating
- Supports 125 kHz and 13.56 MHz frequency credentials
- Supports multiple mount types (Single gang/ European/ Asian box)
| Model Name | OmniAC30 |
| Primary Power | DC 12V@3A-24V@1.5A，Power Max. 10W |
| POE | Supported (IEEE 802.3 at compliant) |
| Operating Frequency/ Standards | 125KHz 13.56MHz: ISO14443 types A&B, ISO 15693 2.4GHz Bluetooth |
| RS-485 connection | RS-485 standard/ OSDP V2.0/ 2.2* |
| CPU | 1.2GHZ Quad Core ARM Processor |
| NPU | 2.4 TOPs NPU |
| Memory | 1 GB RAM + 8G Flash |
| Camera | Face Automatic Exposure Palm Automatic Exposure Face Tracking Palm Detection WDR 50Hz/ 60Hz Anti-Flicker Dual Camera Output image 720x1280 pixels |
| Ethernet network connection | Ethernet: 10 Base-T/ 100 Base-TX, Auto MDI/ MDIX WiFi: IEEE802.11 a/b/g/n 2.4GHz/ 5GHz |
| Data Protection |
Complies with TLS 1.2 for end-to-end secure communication channel (Secured Communication between Standalone Terminal & Server)
AES128 (Secured Communication between the Standalone Terminal & OSDP Readers & Access Control Panels)
|
| Number of Ports |
1*TCP/ IP 1*RS-485 4ch TTL Inputs 1ch TTL Output 2 relays |
| Inputs |
Wiegand, Button, Sensor, Aux |
| Outputs |
Wiegand, Lock Relay, Alarm Relay (Relay via dry contacts） |
| Normally Open Contact Rating |
5A @30Vdc resistive |
| Normally Closed Contact Rating |
5A @30Vdc resistive |
| Tamper Switch |
Magnetic tamper detection system |
| On-Board Monitor |
Size: 5.0", Resolution: 720*1280 |
| Audio Indicator |
Internal Speaker with adjustable intensity (Configurable on UI) |
| MIC |
Supported |
| Video Phone |
Support Standard SIP V2.0 |
| User Capacity |
100,000 |
| RFID Card Capacity |
100,000 |
| Maximum RFID Card Number Length |
Wiegand In & Out (up to 64 bits) |
| Face Capacity |
50,000 (1:N)/ 100,000 (1:1) |
| Palm Capacity |
10,000 (1:N)/ 100,000 (1:1) |
| RFID Reading Distance |
13.56MHz & 125kHz: Up to 1.96"/ 50 mm (depending on environment and transponder) |
| Face Authentication Distance |
15.7" - 55.1" (40cm - 140cm) |
| Face Authentication Posture Adaptability |
Yaw ≤ 30°, Pitch ≤ 30°, Roll ≤45° |
| Face Authentication Accuracy |
True Accept Rate (TAR)=99%@, False Accept Rate(FAR)=0.01% |
| Face Authentication Mode |
1:1, 1:N |
| Face Authentication Speed |
< 100ms (Field Test Result) |
| Face Authentication Liveness Detection |
Yes (Infrared-visible light mode, Infrared Light Mode) |
| Face Mask Detection |
Yes |
| Palm Authentication Distance |
Liveness Detection On: 7” -15.7” (18cm - 40cm) |
| Palm Authentication Posture Adaptability |
Yaw ≤ 45°, Pitch ≤ 30°, Roll ≤ 90°, Bend ≤ 30° |
| Palm Authentication Accuracy |
True Accept Rate(TAR)=98.7%, False Accept Rate(FAR)=0.01% |
| Palm Authentication Mode |
1:1, 1:N |
| Palm Authentication Speed |
< 140ms (Field Test Result) |
| Palm Authentication Liveness Detection |
Yes (Infrared Light Mode) |
| Recommend Installation Height |
55" (140cm) (Using the plate with tilt angle) 59" (150cm) (Plate with horizontal angle) |
| Transaction Buffer |
Records: 1,000,000 |
| Access group |
99 |
| On-Board Access Point Control |
1 access point on board |
| On-Board Reader Support |
1 (OSDP over RS-485) or 1 (Wiegand Input) |
| Protection / Resistance |
Weather & Dust Proof Protection Rating compliant with IP66 |
