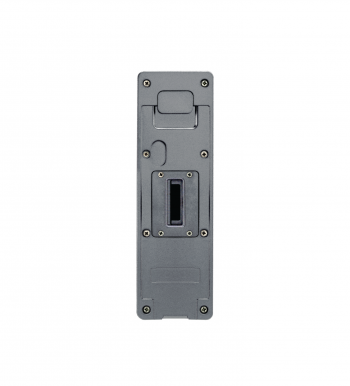

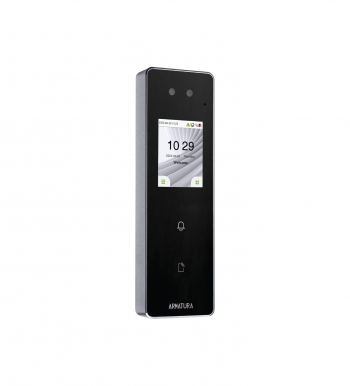

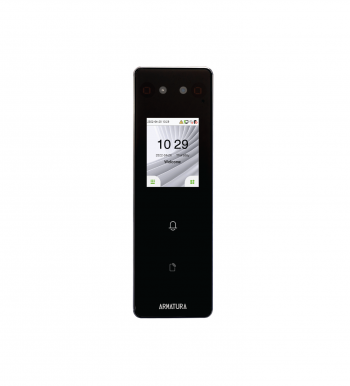

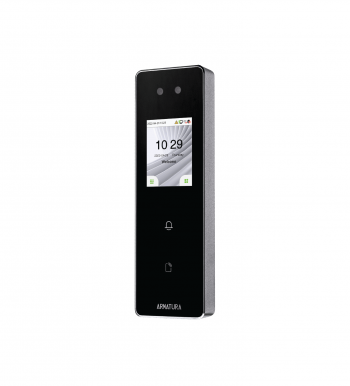

OmniAC20
All Weather Outdoor Multi-tech Smart Standalone Terminal
- Multi-Biometric technology combining palm and face recognition
- IP66 water & dustproof protection rating
- Slim design & form factor for a modern aesthetic design
- Supports 125 kHz and 13.56 MHz frequency credentials
Certified of Data Protection
- Armatura's engineers and researchers have done their best to deliver Armatura's system with the highest level of data protection in the industry
IP66 Water & Dustproof Protection
- Weather & Dust Proof Protection Rating compliant with IP66 - built to withstand freezing cold winters, heavy rains and dry/hot summers
Touchless Palm Recognition
- Armatura reaches a new height of the industry by verifying images of palm and palm print. Palm image can be extracted by simply capturing the hands in front of camera for automatic recognition.
- Recognition Distance 1.6 feets
- Recognition Time 0.35s
- Recognition Angle 60°
Facial Recognition
- Armatura's face recognition terminals are proactive facial recognition devices, which is enabled to actively collect face images and perform matching and identification
- Recognition Distance 10 feets
- Recognition Time 0.3s
- Recognition Angle 30°
| Model Name | OmniAC20 |
| Primary Power | 12 VDC (3A min @12V) |
| RS-485 connection | RS-485 standard / OSDP V2.0/ 2.2* |
| CPU | 1.2 GHZ Quad Core ARM Processor |
| NPU | 2.4 TOPs NPU |
| Memory | 1GB RAM + 8GB Flash |
| Camera | Face Automatic Exposure Palm Automatic Exposure Face Tracking Palm Detection 50Hz/60Hz Anti-Flicker Dual Camera RGB Camera: CMOS, 2 MP resolution (Output image 720*960pixels) IR Carmera: Global shutter CMOS, 1.3 MP resolution (Output image 720*960pixels |
| Primary Host Communication |
Ethernet: 10/ 100 Mbps, auto MDI/ MDIX
Complies with TLS 1.2 for end-to-end secure communication channel
|
| Ethernet network connection | 10 Base-T/ 100 Base-TX, Auto MDI/ MDIX |
| Data Protection | Complies with TLS 1.2 for end-to-end secure communication channel (Secured Communication between Standalone Terminal & Server) AES128 (Secured Communication between Standalone Terminal & OSDP Reader & Access Control Panel) |
| Number of Ports |
1*TCP/IP 1*RS-485 Input: 4ch TTL Inputs Output: 1ch TTL Output 3 relays |
| Inputs |
Wiegand, Button, Sensor, Aux |
| Outputs |
Wiegand, 3 relays with dry contacts (Lock, Alarm, Bell) |
| Normally Open Contact Rating | 5A @30Vdc resistive |
| Normally Closed Contact Rating | 5A @30Vdc resistive |
| Operating Frequency/ Standard | 125KHz 13.56MHz: ISO14443 types A&B, ISO 15693 2.4GHz Bluetooth |
| Tamper Switch | Magnetic tamper detection system |
| On-Board Monitor | Size: 2.4", Resolution: 320*240, Touch Screen，TFT |
| Audio Indicator | Internal speaker with adjustable intensity (Configurable on UI) |
| MIC | Supported |
| Video Phone | Support Standard SIP V2.0 |
| User Capacity | 50,000 |
| RFID Card Capacity | 50,000 (1:N)/ 50,000 (1:1) |
| Maximum RFID Card Number Length | Wiegand In & Out (up to 64 bits) |
| Face Capacity | 10,000 (1:N)/ 50,000 (1:1) |
| Palm Capacity | 5,000 (1:N)/ 20,000 (1:1) |
| Face Authentication Accuracy | True Accept Rate (TAR)=99%@, False Accept Rate(FAR)=0.01% |
| Face Authentication Mode | 1:1, 1:N |
| Face Authentication Speed | |
| Face Authentication Liveness Detection | Yes (Infrared-visible light mode, Infrared Light Mode) |
| Face Mask Detection | Yes |
| Palm Authentication Distance | 7" - 15.7" （8 - 40 cm) |
| Palm Authentication Posture Adaptability | Yaw ≤ 45°, Pitch ≤ 30°, Roll ≤ 90°, Bend ≤ 30° |
| Palm Authentication Accuracy | True Accept Rate(TAR)=98.7%@, False Accept Rate(FAR)=0.01% |
| Palm Authentication Mode | 1:1, 1:N |
| Palm Authentication Speed | < 140ms (Field Test Result) |
| Palm Authentication Liveness Detection | Yes (Infrared Light Mode) |
| Recommend Installation Height |
55" (140cm) (Using the plate with tilt angle) 59" (150cm) (Plate with horizontal angle) |
| Transaction Buffer |
Records: 1,000,000 |
| Access group |
99 |
| On-Board Access Point Control |
1 access point on board |
| On-Board Reader Support |
1 (OSDP over RS-485) or 1 (Wiegand Input) |
| Protection / Resistance |
Weather & Dust Proof Protection Rating compliant with IP66 |
