- Single-lane speed gate
- Highly durable and low maintenance cost
- Switchable reader panel
Mars Series is the latest and finest creation from ZKTeco, which designed to deliver an ultimate user experience, safety level, and integration friendliness. Up to 22 pairs (Mars-Pro Series) Infrared sensors greatly enhanced its anti-tailgate performance. Creative snap-fit, screwless, modularized design, which makes installation and maintenance work easier than ever, and saved up to 30% production lead time.

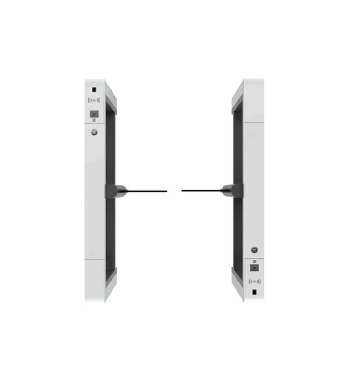

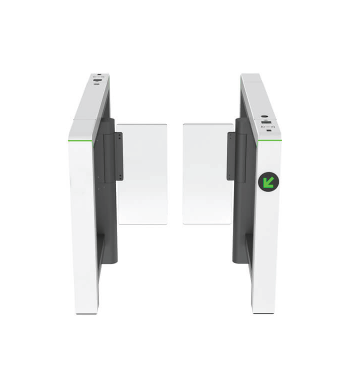

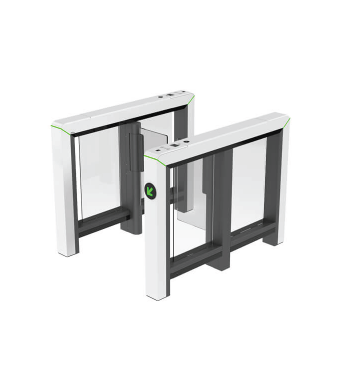

Mars Pro-S1000 Single-Lane Speed Gate
Mars Pro-S1011 Single-Lane Speed Gate (w/ controller and RFID reader)
Mars Pro-S1022 Single-Lane Speed Gate (w/ controller and fingerprint & RFID readers)
Highly Durable and Low Maintenance Cost
- Modularized structure design
- Exposed mounting holes for easy installation
- Mainly made of SPCC (option: SUS 316 stainless steel)
PGIC Controller
- Equipped with a PGIC controller
- Access control
- General features and parameters settings on the controller's menu
Switchable Reader Panel
- Six panels available: RFID only, RFID & Fingerprint, RFID & QR Code, RFID & Fingerprint & QR Code, RFID & Card Slot, RFID & Card Slot & QR Code
- Reducing middlemen's inventory pressure
- Reducing installation time and expenses
Installation Place for Facial Recognition A&C Terminal
- Diameter: 34mm
- Integration with Facial Recognition, Temperature and Mask Detection Terminals
LED Indicator
- Visual cues for correct walking direction
- Clear guidance with green and red illustration
Infrared Sensors
- 20 pairs of infrared sensors for stronger tailgating detection
Servo Motor
- Faster opening speed
- High durability
| Model | Mars Pro - S1000 Series |
| Power Requirements | AC100V to 120V / 200V to 240V, 50 to 60Hz |
| Working Power | 70W; 20W (stand-by) |
| Drive Unit | Servo Motor |
| MCBF | 10 million |
| Technical Throughput Rate | Up to 30 people per minute |
| Barrier Movement | Swing |
| Noise | <60dB |
| Infrared Sensor | 20 pairs |
| LED Indicator | Support |
| Working Temperature | -25°C to 65°C |
| Working Humidity | 20% to 95% (non-condensing) |
| Working Environment | Indoor / Outdoor (if sheltered) |
| Lane Width | 650mm (option: ≤900mm) |
| Dimensions (L*W*H) | 1360 * 120 * 1020 (mm) |
| Dimensions with Packaging (L*W*H) | 1510 * 365 * 1216 (mm) (2 boxes) |
| Net Weight | 110kg (±5kg) |
| Gross Weight | 160kg (±5kg) |
| Cabinet Material | SPCC (option: SUS316 stainless steel) |
| Lid Material | SPCC (option: SUS316 stainless steel) |
| Barrier Material | Acrylic (option: glass) |
| Packing Material | Wooden case |
| Protection Level | IP34 |
