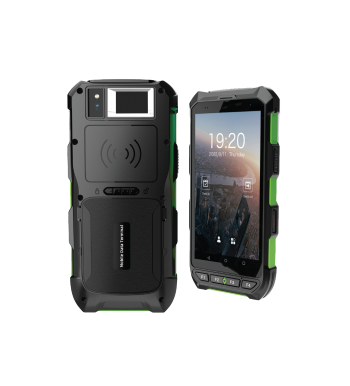

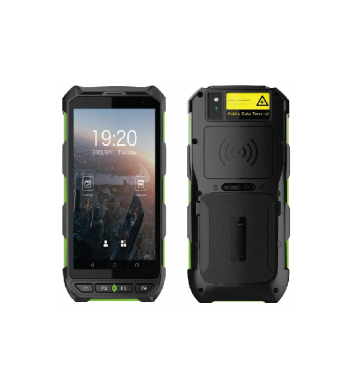

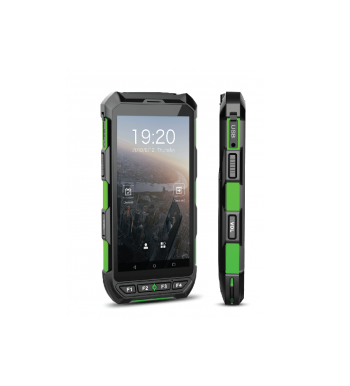

Hybrid Biometric & QR Code Handheld Mobile Time and Attendance Terminal
- 5.5 inch IPS LCD HD display (720*1440)
- 5 MP+13 MP front and rear camera
- Support 2.4GHz/5.0GHz Wi-Fi, Bluetooth, 4G, GPS, NFC
- Embedded 5200mAh li-ion battery, support up to 5 operating hours
- Support high-speed and accurate QR code/barcode scanning
ZKTeco's Horus H1, a handheld mobile time and attendance terminal designed for versatile use. With the rechargeable 5200mAh Li-ion battery, Horus H1 can operate for 5 hours without recharging. Also, the high-capacity battery provides ample power to support Horus H1 to perform hybrid biometric verifications, including facial recognition, fingerprint verification, NFC, and QR code management.
The Horus H1 has a GPS chip for location-based attendance tracking and supports various communication protocols, such as Wi-Fi, 3G, 4G, and Bluetooth. This flexibility ensures that attendance tracking is not limited to a specific method or location.
The Horus H1 is built to last, featuring a hexagonal rugged casing, tempered glass surface and an IP65 protection rating, protecting against accidental drops and vandal attacks.
Horus H1 is an ideal solution for working in harsh and rainy environments such as factories, construction sites, and industrial settings.
- 5.5 inch IPS LCD HD display (720*1440)
- 5 MP+13 MP front and rear camera
- Support 2.4GHz/5.0GHz Wi-Fi, Bluetooth, 4G, GPS, NFC
- Embedded 5200mAh li-ion battery, support up to 5 operating hours
- Support high-speed and accurate QR code/barcode scanning
- Facial recognition distance: 0.3m to 2m. Facial recognition speed <1s/ ; User Facial recognition accuracy rate ≥99%
- Support mask detection
- A hexagonal rugged casing with tempered glass surface and achieved IP65 protection rating (waterproof and dustproof)
System |
|
| Operation System | Android 10.0 |
| CPU | 64bit Octa-core Cortex-A73 CPU, 2.0GHz |
| Storage | 4GB RAM / 64GB ROM, Micro SD card (max 256GB expansion) |
| SDK | PUSH SDK |
| Display | 5.5 inch IPS Capacitive LCD touch screen |
| Screen Resolution | 720*1440 |
| Camera | Dual Lens Rear camera (13 megapixels); Front camera (5 megapixels) |
| QR Code & Barcode | Dynamic QR codes on the ZKBioSecurity mobile application QR code, PDF417, Data Matrix, MicroPDF417, Aztec scanning in third-party development projects |
| Supported Card Type | ISO14443A & 15693, NFC-IP1, NFC-IP2 |
Communication |
|
| 3G/4G | TDD LTE Band 38, 39, 40, 41 FDD LTE Band 1, 2, 3, 4, 5,7,8,12, 17, 20 WCDMA (850 / 1900 / 2100MHz) GSM / GPRS / Edge (850 / 900 / 1800 / 1900MHz) |
| WLAN | 2.4GHz / 5.0GHz Dual Frequency IEEE 802.11 a / b / g / n / ac |
| Bluetooth | Bluetooth Class v2.1+EDR Bluetooth v3.0+HS Bluetooth v4.2 |
| GPS | GPS (embedded A-GPS), Glonass (accuracy distance of 5m) |
Performance |
|
| Card Reading Distance (NFC) | 3cm-5cm max. |
| Biometric Authentications | Face, Fingerprint (Optional) |
| Facial Recognition Algorithm | ZKFace 5.6.2 |
| Facial Recognition Distance | 0.3m to 2m |
| Facial Recognition Speed | < 1s |
| Facial Recognition Accuracy Rate | ≥ 99% |
| Fingerprint Sensor Type | Semiconductor |
| Fingerprint Comparison Time | ≤0.5s |
Capacity |
|
| User Capacity | 50,000 |
| Face Capacity | 50,000 |
| Fingerprint Capacity | 30,000 (Optional) |
| Card Capacity | 50,000 |
| Logs Capacity | 1,000,000 |
| Interface | 1*USB 2.0 Type-C |
| Protection level | IP65 |
| Supported Software | BioTime, ZKBio Security, ZKBioCV Security |
| Firmware Functions | Push, Schedule Bell, Automatic Status Switch, Record Query, Groups, Holidays, DST, Workcode, Duress Mode (Password & Fingerprint), Customization of Wallpaper & Screen Saver |
| Language | English, Korean, Latin American, Indonesian, Vietnamese, Traditional Chinese, Portuguese, Spanish, Farsi, Japanese, Russian and Thai |
General |
|
| Power Supply | 5V 2A |
| Embedded Li-ion Battery | 5200mAh |
| Casing Material | ABS plastic, tempered glass surface |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Working Humidity | <90% RH |
| Storage Humidity | <90% RH |
| Operating Environment | Outdoor |
| Gross Weight | 400g |
| Weigh with Packaging | 700g |
| Dimensions (H*W*D) | 170mm*80mm*20mm (6.7in*3.1in*0.8in) |
| Certifications | ISO9001, ISO14001, CE, FCC |
