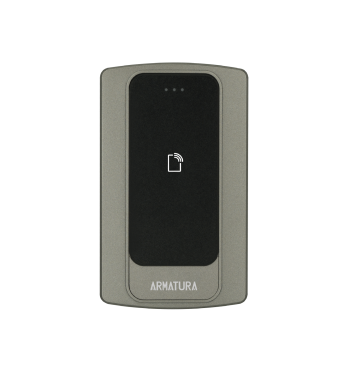

EP10C

All Weather Outdoor Multi-tech Smart Reader

  • Advanced Security Architecture
  • Supports Over 100 RFID Credential Types

Supports Multi-tech Reading

  • Supports 125 kHz, 13.56 MHz and 2.4GHz frequency credentials.
  • Supports 100+ card types, covering most of the common card formats in the market.

Certified of Data Protection

  • Armatura's engineers and researchers have done their best to deliver Armatura's system with the highest level of data protection in the industry

Ultimate Protection

  • IP68 Water & Dustproof Protection
  • IK10 Vandal-proof Protection
  • UL94-V0 Flame-Retardancy
Model Name EP10C
Operating Frequency / Standards

125 kHz

13.56 MHz: ISO14443A types A & B, ISO15693

2.4 GHz Bluetooth

Functions RFID and Bluetooth
Communications & Panel Connection Wiegand OSDP (v2.2) via RS-485 (Up to 128bits SCP Secure Communication)
Reading Distance

13.56MHz & 125kHz: Up to 2.3"/60 mm (depending on environment and transponder)

Up to 393.7"/ 10m with a Bluetooth Smartphone (configurable distances on each reader)

Data Protection
AES128 (Secured Communication between Reader & Controller)
Secure Data Storage in EAL6+ Certified Crypto Chip
Visual Indicator RGB LEDs (Configurable By 'Armatura Connect' Mobile APP)
Audio Indicator Internal buzzer with adjustable intensity (Configurable By 'Armatura Connect' Mobile APP)
Power Requirement / Power Supply 9 VDC to 24 VDC
Operating Temperature -22°F - 158°F /-30°C to 70°C
Dimensions

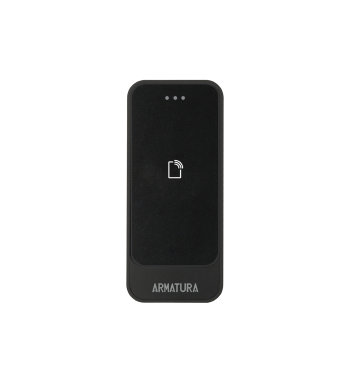

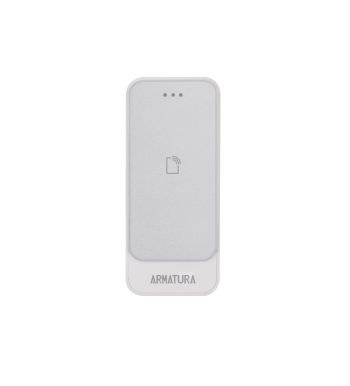

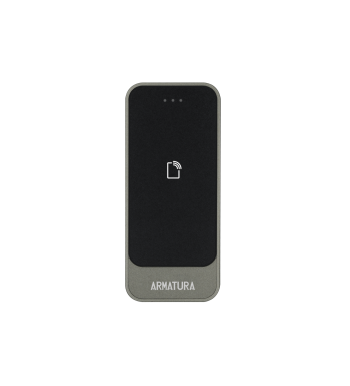

Standard Cover: 1.89" W x 4.52" H x 0.97" D (48 x 114.8 x 24.7mm)

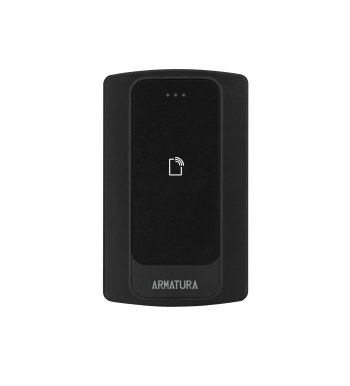

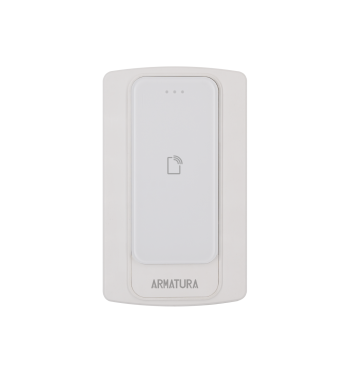

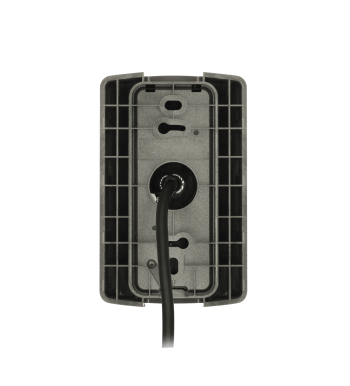

Gangbox Cover: 3.00" W x 4.84" H x 0.97" D (76.2 x 123.0 x 24.7 mm)

Tamper Switch

Magnetic tamper detection system

Certifications

CE, FCC, RoHs3.0, WEEE,UL294

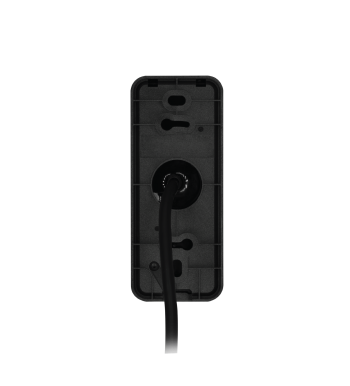

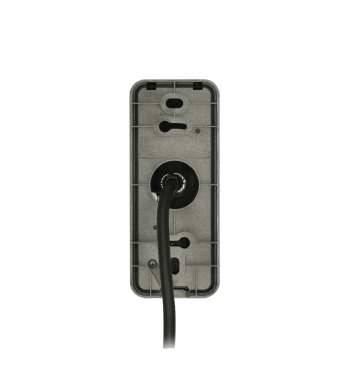

Mounting

Suited for mullion-mount door installations or any flat surface mounting

Optional Asian / European / single-gang-box back-box spacing

Protection / Resistance

Weather & Dust Proof Protection Rating compliant with IP68

Reinforced Vandal-proof Structure IK10 certified

UV Stability

Nil structural degradation for the life of the reader in 3 years

Housing Material

Polycarbonate UL94-V0 & UL746C (F1)
