Comet Series
Multi-credential Speed Gate for Entrance Control

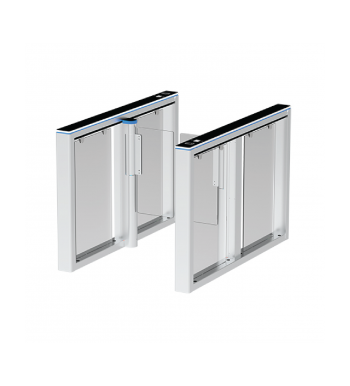

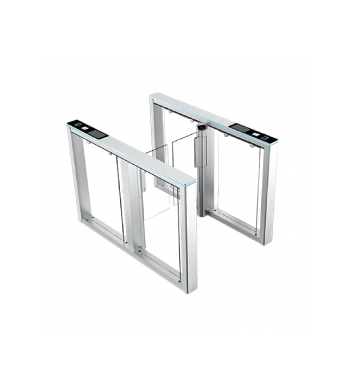

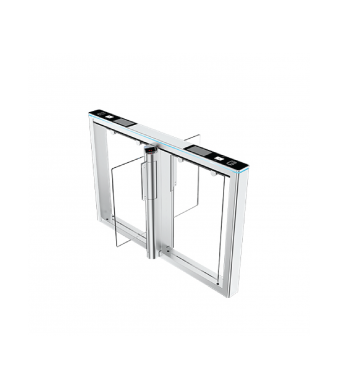

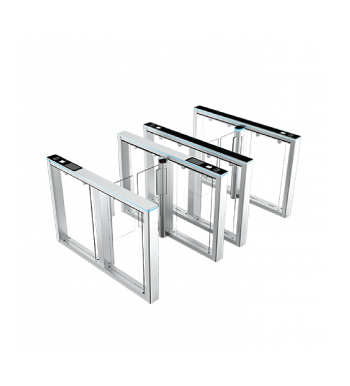

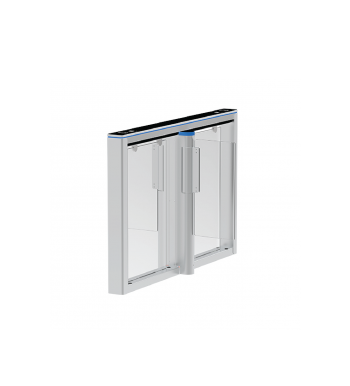

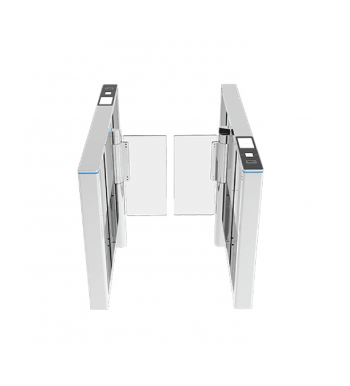

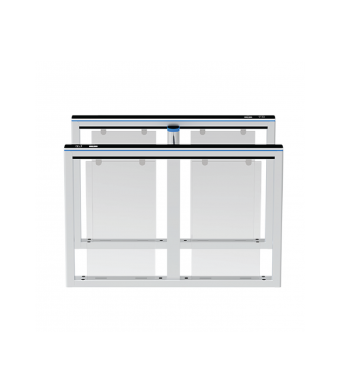

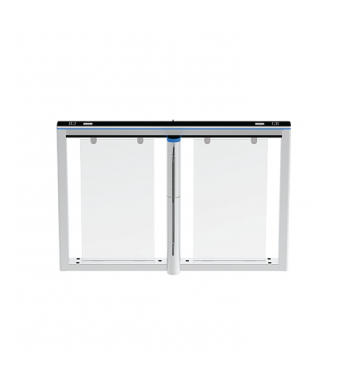

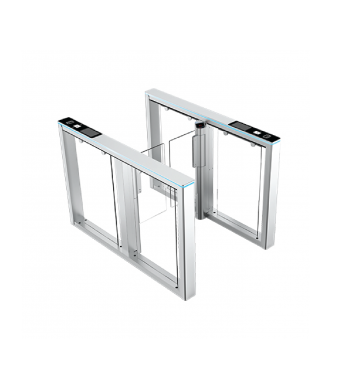

The Comet Series by ZKTeco is an innovative multi-credential speed gate featuring a sleek, transparent design that fits seamlessly into corporate settings. Available in single-lane and double wings versions, these gates combine advanced functionality with a lightweight yet robust chassis made of distinctive cast aluminum alloy. They offer customizable ambient lighting with 7 RGB colours and are designed for easy installation. The Comet Series revolutionizes facial recognition with eight undercount options and an ultra-wide-angle lens, ensuring optimal performance for individuals of varying heights, including children and seniors with wheelchairs. The series supports biometric, RFID, and QR code options, and offers flexible lane combinations and diverse material choices to meet specific requirements. Security is enhanced with locked positions, clutch engagement, and automatic barrier opening in emergencies
- Aesthetic Appeal
- Ambient LED Visual Indicator
- Innovative Cast Aluminium
- Installation-Friendly Design
- Multi-Credential Compatibility
- Flexible Lane Combination and Options
- Streamlined Facial Recognition System Integration
| Model Name | Comet-S1000 Comet-S1200 |
| Audio Indicator | Internal buzzer |
| Visual Indicator | LED strip along the lid (7 Colour RGB, Customizable) blue = stand by steady green = normal use steady red = door closing flashing red = alarm |
| Display | 1 or 2*7" ISP touch monitor (Under mount facial recognition version only) |
| Lane Type | Comet-S1000: Single lane Comet-S1200: Dual wings (with comet-1000) |
| Lane Width (mm) | 660mm (Standrad) 900mm (Optional) |
| Barrier Movement Type | Swing |
| Motor | DC brushless motor |
| Movement Speed | 0.8s per movement(open / Close timing) |
| Movement Accuracy | ≤1.5 Degree per movement |
| Clutch | Mechanical clutch for anti-panic / anti-collision |
| Lid Material | Tempered glass (Black) (Standard) |
| Lid Options Authentication Methods | Streamlined under mount options: Fingerprint / RFID / QR Code / Fingerprint + RFID / Fingerprint+QR Code / Fingerprint+RFID+QR Code / Facial recognition with display Top mount option: mounting pole (Compatible with ProFace X / SpeedFace V5L/ Elite Pass) |
| Chassis Material | Cast aluminium alloy (T=3mm) |

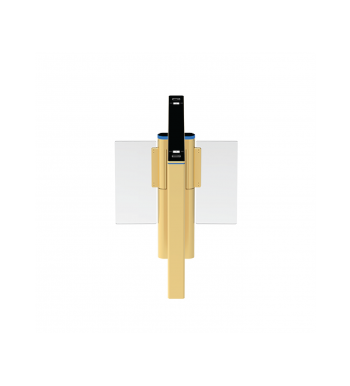

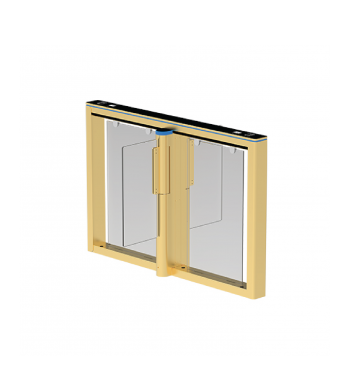

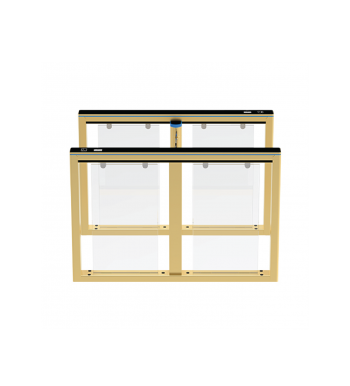

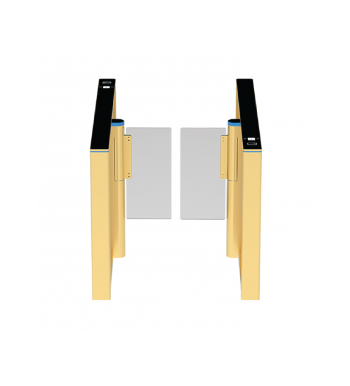

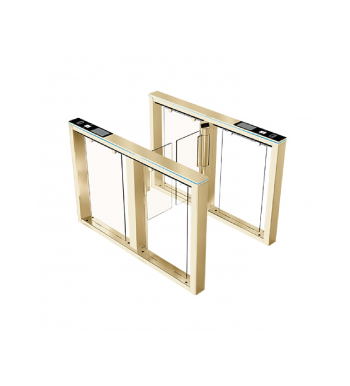

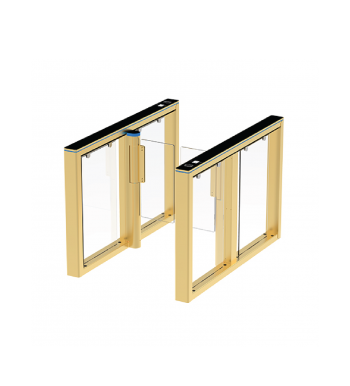

| Chassis Colour | Silver (Standard), gold (Optional) |
| Door Leaf Material | Clear acrylic (H*W 630*295mm (Standard)) Clear tempered glass (H*W 630*295mm) |
| IR Sensors | 8 Pairs (Standard) (High position) |
| Motherboard Function | System configuration, access mode configuration, anti-pinch configuration, anti-tailgate configuration etc. |
| Motherboard Communication | Fire alarm port(relay)*1, RS485 port*1 |
| Controller | PGIC controller (Recommendation) Others depends on dimensions fitting in (Optional) |
| Credential Options | Under mount RFID reader: (support model: ProID series, Armatura EP10C & Armatura EP20 series) under mount QR code reader: QR500 under mount fingerprint reader: FR1200 / FR1500 under mount facial recognition terminal: G4 Pro Top mount facial recogntion terminal: ProFaceX / Elite Pass / SpeedFace V5L |
| Flow Rate | RFID: 30 passengers per minute QR Code: 30 passengers per minute Fingerprint: 20 passengers per minute Face: 15 passengers per minute |
| Accessibility | Under mount facial recognition version: adult, children, disability rest of the versions: adult, children (with care), disability (with care) |
| Power Supply | 110V / 220V AC @ 50Hz to 60Hz |
| Power Rating | 20 VA (Stand by) 120 VA (Operation) |
| Fire Signal | Input for voltage free contact |
| Noise Level | Less than 60 dB |
| MTTR | Less than 60 minutes |
| MCBF | 6 million |
| Gross Weight | Comet-S1000: 130kg Comet-S1200: 80kg |
| Net Weight (kg) | Comet-S1000: 100 kg Comet-S1200: 65 kg |
| Dimension (L*W*H) | 1500*115*1000mm (Standard) |
| Working Temperature | -28°C to 60°c |
| Working Humidity | 95% RH (non-condensing) |
| Certifications | CE, FCC |
| Ingress Protection Rating | N/A (Waterproof and dustproof) N/A (Barrier only) (Vandal ressistant) |
| Supported Software | ZKBio Access / ZKBio CVSecurity (Depends on equipped access controller) |
| Safety Features | Safety force sensing; Lower safety sensors; Accurate presence sensing ; Emitter/ receiver infrared sensors technology; Logic voltage 24V DC; Voltage free contact input for fire alarm fail state; Auto opening on power off; Anti-panic push opening in operation; Wide walkway for wheelchair or easier access; Accompanied wheelchair or child passage management (under mount facial recognition version) |
| Security Features | Anti-intrusion, Anti-tailgating, Wrong way enter alarm, Automatically close door no one pass |
| Product Delivery | Pre-assembled |
| Application Environment | Indoor |
| Site Preparation | Flat & level finished floor (Base plate in options for unfinished floor) |
