BL-855P48A-S8-S

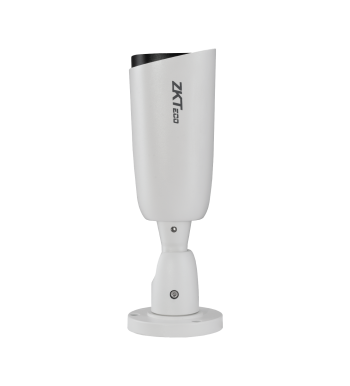

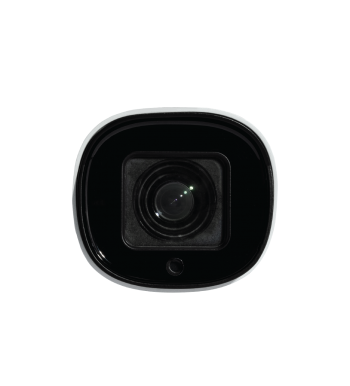

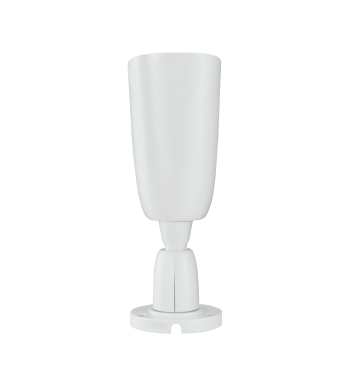

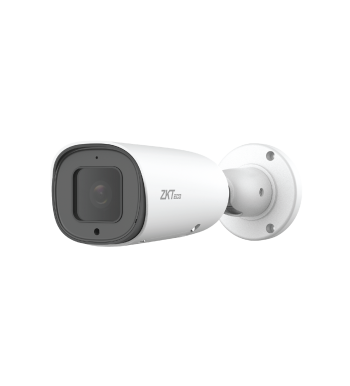

5MP BioSense Motorized Lens Bullet IP Camera

  • 1/2.7” 5MP CMOS Sensor
  • H.265 Dual stream encoding
  • High-quality optical lens: 3.6-10.8mm
  • 80m IR effective range
  • Built-in PoE
  • Built-in micro-SD card slot (support max. 256GB)
  • IP67 metal casing

BioSense Series IP Camera is the front-end of intelligent video surveillance solution released by ZKTeco based on the  Deep-Learning algorithm and Computer Vision technology.

By using advanced and powerful CPU,couple with the embedded intelligent classification algorithm based on  computer vision technology, the BioSense IP Cameras can accurately detect and recognize 3 key types of target:  human, vehicles and objects, meanwhile effectively filter out the other useless objects such as: animals, leaves, shadows, and rain, etc to reduce the false alarms, and more focusing on the important alarms.

The BioSense IP Camera can greatly help to improve the efficiency and safety of the entire video surveillance system,  can be widely used in different scenario such as smart school, office, industrial park, community, public security, etc.

H.265 HEVC

  • H.265 is an evolutionary optimization of the traditional H.264, it includes a series of encoding strategy such as ROI, smart 2D/3D noise reduction, etc. Delivering high quality video with up to 70% lower bandwidth.

IVA (Intelligent Video Analytics)

  • The BioSense IP Cameras support multiple intelligent video analytic functions: Target Counting, Object Lost/Left, and the Line Crossing, Area detection, Smart Motion Detection supports human and vehicle targets classification.

True WDR

  • Powered by ZKTeco's powerful ISP algorithm and high quality sensor, the BioSense Series IP Cameras are built-in with true wide dynamic range feature, can present excellent picture images at extreme contrast lighting environment.

ANR (Only for SD card models)

  • While the connection lost between IPC and NVR, the video will be saved in SD card. The saved video will be auto replenished to NVR when network recovers to avoid any video lost.

Protection

  • With precise mechanical and rugged metal casing design, the BioSense Series IP Camers can stand against water and dust with industrial IP67 rank, and support to work at variety of harsh outdoor environments such as temperature range -30°C to +60 °C,etc.

CAMERA

Model BL-855P48A-S8-S
Image Sensor 1/2.7” 5MP CMOS
Max.Resolution 2592(H) * 1944(V)
ROM 128MB
RAM 256MB
Scanning System Progressive Scan

Electronic Shutter Speed

1/5 s to 1/100,000 s
Min. Illumination 0.001Lux@F1.7~3.3 (AGC on, Color)
0 lux (IR on, B&W)
S/N Ratio >52dB
IR Range 80 m
Illuminator On/Off Control Auto / Manual
Illuminator Number 4 * IR LED
Smart IR Support
Angle Adjustment for Installation Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotation: 0° ~ 360°
TV System PAL / NTSC
Image Settings Trigger mode, Brightness, Contrast, Saturation, Hue, Sharpness, AGC, White balance, Gamma, Backlight mode, adjustable by platform software or web browser

Software Reset Default

Support

General Function

Heartbeat, Mirror, Privacy mask, Log, Password reset

LENS

Lens Type

Motorized vari-focal

Lens Mount

M22

Mount Type

Board-in

Focal Length

3.6 ~ 10.8mm

Max. Aperture

F1.7 ~ 3.3

Optical Zoom

3X

Field of View

FOV: 35° ~ 95°
Horizontal: 108° ~ 33°
Vertical: 57° ~ 18°
Diagonal: 130° ~ 38°

Iris Type

Fixed

Close Focus Distance

2 m

DORI Distance

Lens: Wide / Telephoto
Detect: 45.8 m / 125.6 m
Observe: 19.6 m / 57.7 m
Recognize: 11.0 m / 26.3 m
Identify: 6.0 m / 12.5 m

VIDEO

Video Compression

H.265 / H.264

Resolution

5MP(2592*1944) / 4MP(2560*1440) / 3MP(2304*1296) / 1080P (1920*1080) / 1.3MP (1280*960) / 720P (1280*720) / D1 (704*576) / VGA (640*480) / Q720 (640*360)

Max Video Frame Rate

Main Stream
50Hz (PAL): 25fps (2592*1944,1920*1080, 1280*960, 1280*720)
60Hz (NTSC): 30fps (2592*1944,1920*1080, 1280*960, 1280*720)

Sub stream
50Hz (PAL): 25fps (704*576, 640*480, 640*360)
60Hz (NTSC): 30fps (704*576, 640*480, 640*360)

Third Stream
N/A

Video Stream Capability

Dual streams

Bit Rate Control

CBR / VBR

Video Bit Rate

H.264: 192kbps ~ 8Mbps
H.265: 224Kbps ~ 8Mbps

Day / Night

Auto (ICR) / Color / B&W

BLC

Support

HLC

Support

WDR

True WDR

Scene Self-adaptation

Support

White Balance

Auto, Custom, Locked, Incandescent lamp, Warm light, Natural light, Fluorescent lamp

Gain Control

Low, Mid low, Mid, Mid high, High

Noise Reduction

2D / 3D NR

Region of Interest (ROI)

Support (4 areas, Level 1 ~ 6)

Defog

Support

Image Rotation

0° / 90° / 180° / 270° / Horizontal / Vertical

Privacy Mask

4 areas

Corridor Mode

Support

Digital Zoom

Support

Anti-flicker

N/A

VIDEO / AUDIO

Built-in Mic S/N Ratio

N/A

Audio Compression

G.711ulaw

Environment Noise Filtering

Support

Audio Sampling Rate

1.8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz

Audio Bit Rate

64 Kbps (G.711ulaw)

INTELLIGENT VIDEO ANALYTICS

IVA (Perimeter Protection)

Target Count, Object Lost / Left, Line Crossing, Area detection, Smart Motion Detection (human and vehicle targets classification)

Intelligent Search

Embedded intelligent classification algorithm based on computer vision technology

Intelligent Video

Support fast retrieval by human & vehicle targets classification, playback and backup

FACE DETECTION

Face Templates

N/A

Face Quality Filtering

N/A

Face Detected Per Frame

N/A

Detection Area

N/A

Detected Face Size

N/A

Capture Response

N/A

ALARM

Basic Alarm Event

Network disconnection, IP conflict, Illegal access, Motion detection, Video tampering, External alarm

Smart Alarm Event

Target Count, Object Lost / Left, Line Crossing, Area detection, Smart Motion Detection (human and vehicle targets classification)

Alarm Linkage Actions

Upload to memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email

NETWORK

Simultaneous Live View

Up to 15 channels

Network

1 RJ45 10 M/100 M self-adaptive Ethernet port

SDK and API

Support SDK, API and ONVIF

Cyber Security

Video encryption; firmware encryption; configuration encryption; account lockout; security logs; IP filtering; trusted boot; trusted execution; trusted upgrade; password protection; complicated password; basic and digest authentication for HTTP/HTTPS; TLS; IP address filter; Security Audit Log

Protocol

TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL / TLS, PPPoE, SNMP, WebSocket

Interoperability

ONVIF Profile S/T/G

User / Host

Up to 256 users can be added. 3 user levels: admin, operator and guest

Network Storage

FTP

Web Browser

IE / Edge / Firefox / Chrome / Safari

Management Software (VMS)

AntarVis 2.0 / ZKBioSecurity IVS / ZKBioAccess IVS / ZKBio CVSecurity / ZKBio CVAccess

Mobile Application

AntarView Pro+ (iOS & Android)

On-Board Storage



Micro-SD Card Slot (support max. 256GB)

Operation System

Windows

P2P Cloud Service

Support

PORT

Audio Input / Output

1 (RCA port) / 1 (RCA port)

Alarm Input

2 (5 mA 3V–5 VDC each)

Alarm Output

1 (300 mA 12 VDC each)

INTERFACE

Reset Button

Support

ANR

Support

USB

N/A

RS485

Support

POWER

Power Supply

PoE (IEEE802.3af,Class 3), DC 12V±10% reverse polarity protection

Power Consumption

Basic ≦ 3W (12 VDC); 4.5 W (PoE)

Power Interface

Ø 5.5 mm coaxial power plug

Casing Material

Aluminium Alloy

STRUCTURE

Dimensions (L*W*H)

246 * 85 * 76 (mm)

Net Weight

0.50kg

Gross Weight

0.64kg

ENVIRONMENTAL

Operating Conditions

–30 °C to +60 °C (–22 °F to +140 °F) / Humidity 95% or less (non-condensing)

Storage Conditions

–30 °C to +60 °C (–22 °F to +140 °F) / Humidity 95% or less (non-condensing)

Protection Grade

IP67

Certifications

ISO9001; ISO14001; CE; FCC
