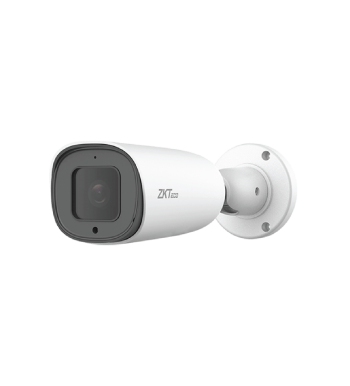

BL-852Q38A-LP
License Plate Recognition Camera
- 98% or bigger reliability rating onLPR
- Recognition of 2-line vehicle plates
- Duplicated license plate filtering
- Access Control Linkage with ZKTeco Parking barriers
- LPR from vehicles in movement (up to 20 km/h) or stopped (Stop & Go).
ZK-LPR Car ID is based on BL-852Q38A-LP, ZKTeco’s high-performance camera with embedded License Plate Recognition application.
The license plate recognition algorithm is executed inside the camera avoiding the use of computers in access control, tolling and weighing scenarios. The License Plate Recognition engine can identify license plates from over 80 countries around the world.
ZK-LPR Car ID is next step in ZKTeco’s access control system technology for an efficient and simple vehicle access management, delivering, faster & easier set-up and allowing customers to achieve high performance with lower installation, maintenance and off-site programming costs.
- Allows integration with server / cloud based solutions
- LPR softwareembedded in the camera
- Access lists for multiple events configuration
- Scalable solution with primary / secondary cameras
- OCR conversion directly in the camera
- Supports 3rd party integration (Milestone and Lenel)
- Identifies plates from more than 80 countries
Supported Countries
| Spain | Netherlands | Austria | Brazil | Costa Rica | Vietnam | Abu Dhabi | Uganda |
| Portugal | Estonia | Slovenia | Argentina | Dominican | Indonesia | Dubai | Burkina Faso |
| France | Bosnia and | Hungary | Mexico | Republic | Philippines | Azerbaijan | Tanzania |
| Italy | Herzegovina | Czech | Ecuador | Honduras | Malaysia | Kuwait | Kenya |
| United Kingdom |
Romania | Republic | Venezuela | Nicaragua | Singapore | Qatar | Botswana |
| Belgium | Belarus | Peru | Bermuda | Israel | Oman | Ghana | |
| Greece | Norway | Ukraine | El Salvador | Trinidad and Tobago |
Lebanon | South Africa | Cameroon |
| Ireland (ROI) | Denmark | Croatia | Bolivia | Barbados | Hong-Kong | Morocco | EEUU |
| Germany | Sweden | Lithuania | Uruguay | Jamaica | Macau | Tunisia | Canada |
| Andorra | Finland | Latvia | Guatemala | Russia | India | Angola | Australia |
| Poland | Gibraltar | Chile | Panama | Turkey | Taiwan | Senegal | New Zealand |
| Bulgaria | Switzerland | Colombia | Paraguay | Romania | Bahrain | Nigeria |
Live View
- ZK-LPR Car ID allows real-time monitoring of alphanumeric license plates captured by the camera, issuing reports with plate recognition data. Optimized memory storage available.
Monitorandreviewlicenseplate recognition history data
- The licences plate recognition history data can be stored for retrieval and review. Different filters can be enabled for this purpuse, such as: Date, time, country of origin.
Configure lists and linkage actions
- The system allows to create an unlimited number of event lists and assign different actions like, for example, opening/closing barriers sending a signal via HTTP or simple integrations with 3rd party companies like Milestone or Lenel. All linkages can be activated by limited time periods and lists can be exported or imported from other devices.
LPR Configuration
- The system supports plate detection from different regions and countries. Country license plate detection is configurable as well as the performance of the camera according to the environment.
Camera |
|
| Model | BL-852Q38A-LP |
| Image Sensor | 1/2.8” Sony STAVIS CMOS |
| Effective Pixels | 1920* 1080 |
| Min. Illumination | Color: 0.001Lux@F1.7 (AGC ON) |
| Flash | 512 Mb |
| IR LED No. | 2 (Smart IR) |
| IR Distance | 50m |
| S/N Ratio | > 52dB |
Lens |
|
| Lens Type | Motorized |
| Mount Type | Board-in |
| Focal Length | 3.35mm ~ 10.05mm |
| Aperture | F1.7 ~ F3.0 |
| FOV | 38° ~ 107° |
| Optical Zoom | 3X |
Video |
|
| Compression | H.265+/H.265/H.26 |
| Resolution | 1080P(1920*1080)/1.3MP(1280*960)/720P(1280*720) Q720P(640*360)/CIF(352*288) |
| Bitrate Control | CBR/VBR |
| Bitrate | H.265+:1536Kbps-7Mbps H.265:1536Kbps-7Mbps H.264:1792Kbps-9Mbps |
| Multi-Streaming |
Main Stream:1080P@25fps Sub Stream: Q720P@25fps |
| Motion Detection |
Support |
| Digital Zoom |
Support |
| Audio Compression |
G7.11u |
| Privacy Mask |
5 areas |
| WDR |
TWDR |
| Day/Night |
Support |
| White Balance |
Support |
| Defog |
Support |
| Noise Reduction |
3D DNR |
| Mirror/Flip |
Support |
| Corridor Mode |
Support |
| HLC |
Support |
| BLC |
N/A |
| ROI |
4 areas |
| Anti-flicker |
Support |
IVA |
|
| Intelligent Video | FaceRecognition/ Line Crossing/Intrusion/ Object Left/ Lost/Counting/ Video Shelter/ Scenechange/ Audio Detection/ Fire Detection/ VQD |
Network |
|
| Protocol | TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPoE, UPnP, SMTP |
| Interoperability | ONVIF, SDK, API |
| Max. Online Users | 5 |
| Web Browser | IE/Firefox/Chrome/Safari |
| Management Software(VMS) |
AntarVis 2.0 |
| Operation System | Windows |
| Mobile APP | AntarView Pro |
| P2P Cloud Service | Support |
Interface |
|
| Ethernet | 1 RJ-45 port (10/100Mbps) |
| Audio I/O | 1 in / 1 out |
| Alarm I/O | 2 in / 1 out |
| RS485 | Support |
| Reset Button | Support |
| Micro-SD Slot | 64GB MicroSD card included |
| ANR | Support |
| USB | N/A |
General |
|
| Power Supply | PoE (IEEE802.3af ), DC 12V±10% |
| Power Consumption | < 3W |
| Ingress Protection | IP 67 |
| Dimensions | 247(L)*85(W)*76(H)mm |
| Working Humidity | 10% ~ 90% |
| Working Temperature | -30°C ~ +60 °C |
| Net Weight | 0.50 kg |
| Gross Weight | 0.64 kg |
