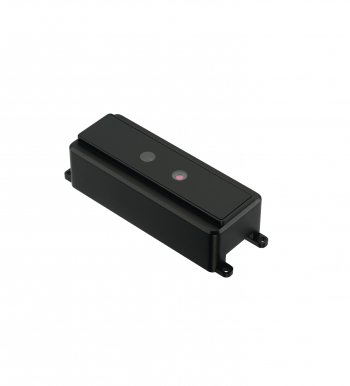

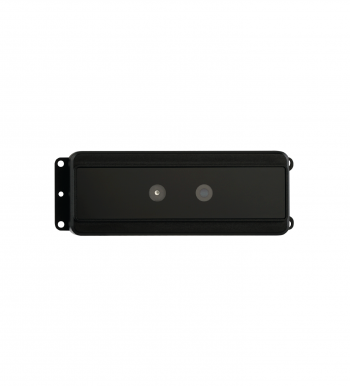

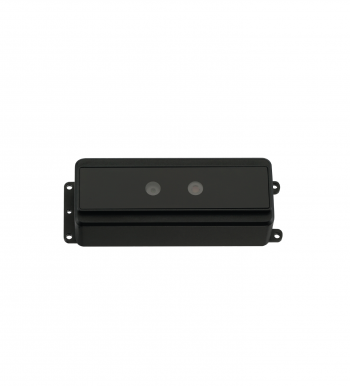

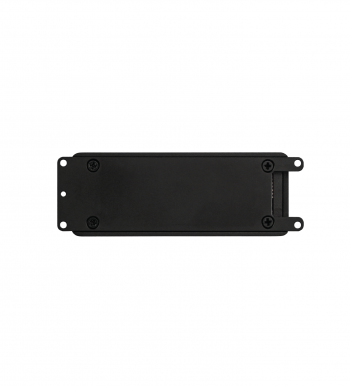

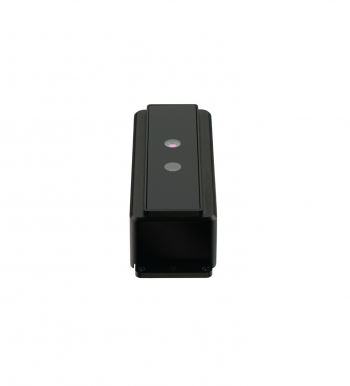

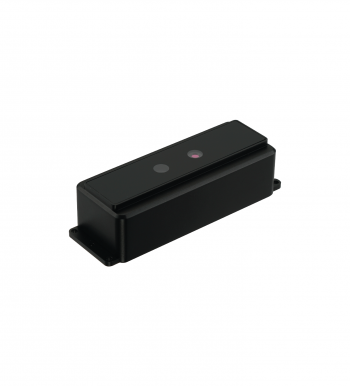

AMT-FAPVS-30
Dual-Lens Multimodal Standalone Module for Face and Palm Recognition
- The key feature highlights of the Armatura 30 series multimodal biometric modules:
- Highly adaptive standalone touchless face and palm recognition modules for a wide range of applications.
- Common core board which offers 2.4 TOPs of computing power for AI.
- Dual camera technology to capture high resolution infrared light and RGB images of face and palm.
- Auto exposure on region of interest to capture high-quality face and palm image to ensure recognition accuracy.
- Supports UVC video stream and HID data communication protocols.
- Built-in face and palm recognition algorithms for full-cycle biometric recognition.
- AI-based high-accuracy liveness detection algorithm to prevent spoofing attack.
- Large volume flash storage with support for up to 30,000 face templates and 5,000 palm templates.
- Lightweight, compact design with developer-friendly interfaces for easy integration with hardware and software applications.
- Currently available modules include:
- AMT-FAPVS-30 standalone multimodal module for built-in integration.
- AMT-FAPVR-30 standalone multimodal reader for direct connection.
General Information |
||
| Processor | 1.2GHZ Quad Core ARM Processor, 2.4 TOPS NPU | |
| Memory | 1 GB RAM and 512MB Flash | |
| Camera | 1.3 MP Infrared light camera; 2.0 MP visible light camera | |
| Interface | USB 2.0 | |
| Communication | UVC and HID Protocol | |
| Power Supply | DC 5.0V/2.0A | |
| Power Consumption | < 2.5W (standby); < 3.5 W (operation) | |
| Operating Temperature | -10°C ~ 55°C / 14°F ~ 131°F | |
| Storage Temperature | -40°C ~ 85°C / -40°F ~ 185°F | |
| Operating Humidity | 15% ~ 95% RH | |
| Dimension | AMT-FAPVS-30: 79.1L x 27.0W x 21.1H (mm) | |
| Certifications | CE, FCC, RoHS | |
Sensor |
||
| Camera Type | Visiblie Light Camera | Infrared Light Camera |
| CMOS | 1/2.8” HDR CMOS, 2.0MP | 1/4” CMOS, 1.3MP |
| Dynamic Range | HDR mode 106dB | N/A |
| Optical Wavelength | 440 nm ~ 650 nm | 940 nm |
| Image Type | 24-bit RGB true color | 256 Grayscale Levels |
| Illumination Range | 0.01 Lux to 50,000 Lux | 0.01Lux to 20,000Lux |
| Exposure Mode | Auto Expose on Region of Interest (AE on ROI) | Auto Expose on Region of Interest (AE on ROI) |
| Image Resolution (Pixel) |
Raw: 1080W * 1920H； Output: 720W * 1280H |
Raw: 1080W * 1280H； Output: 720W * 1280H |
| Shutter Type |
Rolling shutter |
Global shutter |
| Frame of View (FOV) |
Horizontal: 60°, Vertical 36°, Diagonal: 67° |
|
| Frame per second |
15 |
|
| Distortion Rate |
≤ 0.5% |
|
Built-In Algorithms |
||
| Biometric Type | Face | Palm |
| Recognition Distance | 40cm – 120 cm | 18cm - 40cm |
| Posture Adaptability (by Default) | Yaw ≤ 30°, Pitch ≤ 30°, Roll ≤45° | Yaw ≤ 45°, Pitch ≤ 30°, Roll ≤ 90°, Bend ≤ 30° |
| Accuracy | *TAR=99%@FAR=0.01% | *TAR=98.7%@FAR=0.01% |
| Recognition Mode | 1:1, 1:N | |
| Recognition Speed | < 100ms | < 140ms |
| Face Attribute | Age, Gender, Expression classification | N/A |
| Liveness Detection | Infrared-visible light mode; Infrared light mode | Infrared light mode |
| Face Mask Detection | Yes | N/A |
| Capacity On Module | 30,000 | 5,000 |
