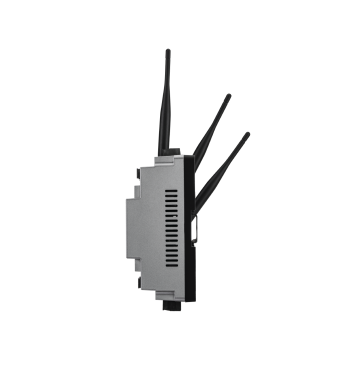

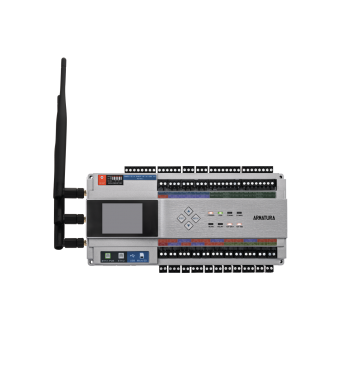

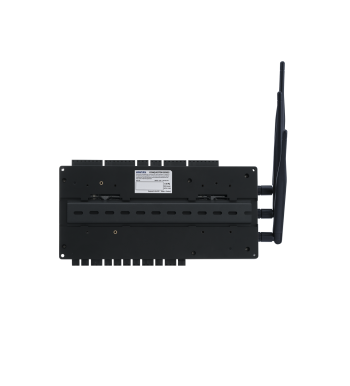

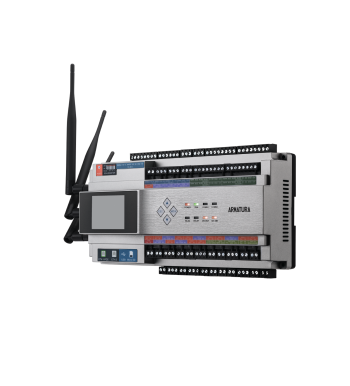

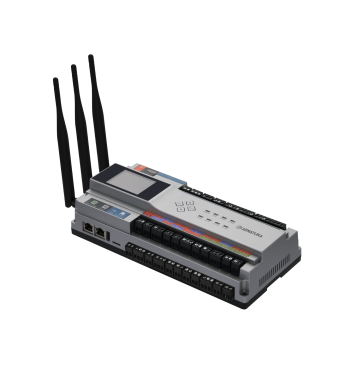

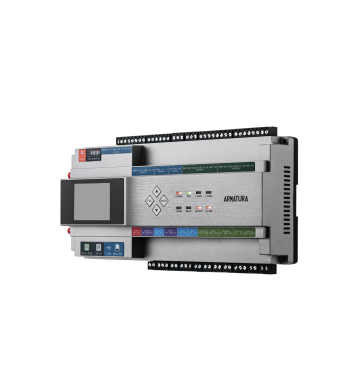

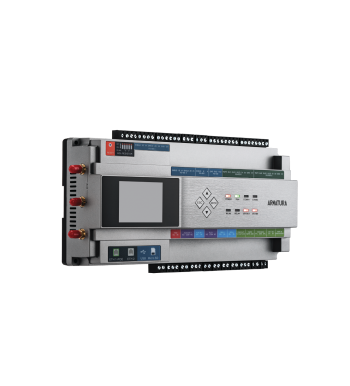

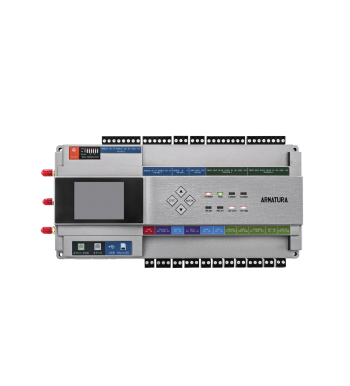

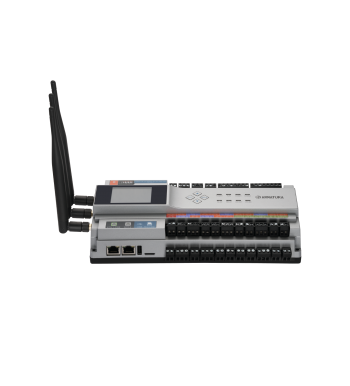

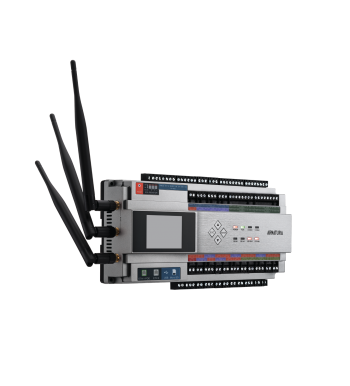

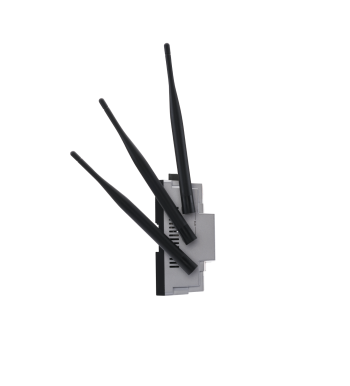

AHSC-1000

IP-Based Core Controller

  • Ultimate Authentication Performance
  • Scalable
  • Advanced Global Functionality based on peer-to-peer communication
  • High Level Cyber Security

Advanced Cyber Security

  • Embedded EAL6+ crypto chips to enhance their tamper-proof and copy-proof functions
  • Facilities AED-256, AES-128, TLS1.2 and RSA2048 Encryption Methods
  • Supports IP/Mac address Filtering Functions

3rd Party Integration

  • Provides Restful API for 3rd-Party Integration
  • Supports OSDP Communication Protocol for all 3rd Party Reader Integration
  • Seamlessly Integrated with DOP & DOC system
  • Supports Common Building Management System Communication Protocol, OPC, BACnet, Modbus

Scalable

  • Supports up to 129 Access Points
  • Supports up to 12,801 Inputs and Outputs
  • Supports up to 400,000 users and 50,000 biometrics Templates

Supervised Inputs

  • Supports 4-states monitoring inputs, detect as low as 5% Ohms in the circuit

POE Ready

  • Supports IEEEPower over Ethernet (POE) 802.3at from power sourcing requirements (PSE)
Model Name AHSC-1000
Access Level 100,000 Levels
Dimension 4.8” W x 10.2” L x 2.5” H in. (122 x 260 x 62.5mm)
Ethernet network connection Port 1: Ethernet: 100Base-TX
Port 2: Ethernet: 100Base-TX
(Configurable for Port Failover)
Face Capacity As a Primary Controller: 100,000 (Storage)
As a Door Unit: 5,000 (1:N) / 100,000 (1:1)
Fingerprint Capacity As a Primary Controller: 100,000 (Storage)
As a Door Unit: 50,000 (1:N) / 100,000 (1:1)
Inputs 4 states supervision, resistor values (5% tolerance),
Normally open contact: use 1.2k, 2.2k. 4.7k or 10k
Normally closed contact: use 1.2k, 2.2k. 4.7k or 10k
Dedicated Panel Tamper IO Input*
Dedicated Microchip Control Fire Alarm IO Input & REX Input for catastrophic situation
Maximum Access Point 129 (with 32pcs AHDU-1460 modules through TCP/IP connection)
97 (with 24pcs AHDU-1460 modules through Armatura RS-485 over RS-485 connection)
Maximum DU Modules 32pcs (1*TCP/IP communication with AES-256 & TLS1.2 end to end secure channel)
24pcs (OSDP over RS-485 communication with AES-128 end to end secure channel)
Maximum IO Board 24pcs (2*High Speed RS-485 communication)
Maximum Inputs 12,801 (with 33pcs AHDU-1460 modules through TCP/IP connection
+ 792pcs AHEB-1602 IO Expansion Board through OSDP over RS-485 connection)
Maximum Outputs 12,801 (with 33pcs AHDU-1460 modules through TCP/IP connection
+ 792pcs AHHEB-0216 IO Expansion Board through OSDP over RS-485 connection)
Maximum RFID Card Number Length Maximum RFID Card Number Length
Maximum Readers 258 (with 32pcs AHDU-1460 modules through TCP/IP connection)
194 (with 24pcs AHDU-1460 modules through Armatura RS-485 over RS-485 connection)
Mobile Credential Capacity 400,000 (1:N) (Bluetooth)
400,000 (1:N) (NFC)
400,000 (1:N) (Dynamic QR Code)
Net Weight approx. 30oz (830g)

Normally Closed Contact Rating

 5A @ 30Vdc resistive

Normally Open Contact Rating

 5A @ 30Vdc resistive

Number of Ports

 2*TCP/IP (IPv4 & IPv6)
3*RS-485
2*Wiegand
1*RS-232

On-Board Access Point Control

 1 access point on board

On-Board Monitor

 Size: 2.4", Resolution: 320*240, TFT Monitor
Quickly view status of board, connected doors and for configuration information display

On-Board Reader Support

 2 (OSDP over RS-485) or 2 (Wiegand) with on-board IO

On-Board Webserver

 Webserver for System Configuration and Management
Dashboard for Controller Status Monitoring,
Device Connection Status Monitoring & Configuration, Performance Status,
Server Primary Controller Setting,
Network Status Monitoring & Setting,
IP Access Filter, SSL / TLS Certificates Setting,
Access Log Export, Controller Reset, Debug Status Monitoring,
Operation Log Monitoring, User Management,
Date & Time Setting, Daylight Saving Time Setting,
NTP Server Setting, General Status, Controller Information

Outputs

 1 relay, 1* Form-C with dry contacts

Palm Capacity

 As a Primary Controller: 5,000 (Storage)
As a Door Unit: 3,000 (1:N) / 5,000 (1:1)

Primary Host Communication

 Ethernet: 100Base-TX

RFID Card Capacity

 As a Main-Controller: 800,000 (Storage)
As a Door Unit: 400,000 (1:N) / 800,000 (1:1)

Secondary Host Communication

 Bluetooth 5.2

Third Host Communication

 Wi-Fi IEEE 802.11ac 5GHz, or 2.4GHz/5GHz IEEE 802.11n
256bit AES* symmetric encryption for Controller to Server and Inter-Controller communications

Transaction Buffer

 5,000,000 Events
